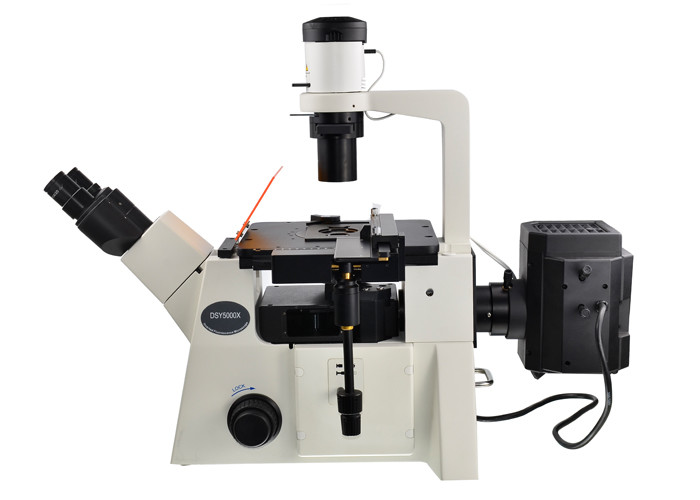

DSY5000X Inverted Optical Microscope B/G/ V/UV Filter Upright And
Inverted Microscope
Hot Sell DSY5000X Inverted Fluorescence Optical Microscope with
B/G/ V/UV Filter
TECHNICALSPECIFICATIONS
EYEPECE(S)
• Extended EWF 10x/20 mm eyepieces, Ø 30.0 mm tubes.
• Eyepieces can be secured to the tubes
HEADS
• Binocular Siedentopf type heads are with 30° inclined tubes,
interpupillary distance from 48 to 75 mm and is equipped with
diopter adjustment(s).
• The trinocular head comes with a Ø 30 mm photo port.
• An optional ergonomic titling head (0:100 50:50) are also
available (optional)
NOSEPIECE
• Revolving and reversed nosepiece for 5 objectives
OBJECTIVES
All optics are anti-fungus treated and anti-reflection coated for
maximum light throughput
Infinity plan achromatic LWD objectives 4x/0.13 (optional) /
10x/0.25/ 20x/0.40/ S40x/0.60/ S60x/0.70 (optional)
Infinity plan achromatic LWD phase contrast objectives 4x/ 0.13
(optional) / 10x/0.25 (optional) / 20x/0.40/ S40x/0.60 (optional)
FILTERS
B/G/UV/V fluorescence filters of Chroma.
B/G/UV/V fluorescence filters of China.(Optional)
STAGE
• Attachable mechanical stage
•Mechanical stage 180 x 155 mm ceramic stage with integrated 80 x
50 mm mechanical stage protects with a very tough ceramic surface,
against marks and scratches.The surface also ensures stray light
not to be reflected from the stage into the objective
CONDENSER FOR BRIGHT FIELD
• ELWD condenser NA 0.30, LWD 72mm, it will be 150mm after taking
down the condenser.
FOCUSING
• Coaxial coarse and fine adjustments, 100 graduations, 1 μm per
graduation, 100 μm per rotation, total travel approximately 14 mm.
• Supplied with an adjustable rack stop to prevent damage to sample
and objectives.
• The coarse adjustments are equipped with friction control
ILLUMINATION
• 6V 30W/ 100W Osram mercury lamp/ 100W mercury lamp(optional)
adjustable halogen illumination with internal 100-240 V power
supply
• The innovative design offer larger apertures, allowing the
optical system of the microscope to produce images at higher
resolutions,
very close to the theoretical diffraction limit of the optics.
Other benefits of the DSZ2000X is the low energy consumption and a
long operating lifetime
• The illumination on models with IOS plan and plan phase infinity
corrected system provides high contrast and a maximum achievable
resolving
power of the optics. Also available for other models as an option
PACKAGING
• Supplied with power cord, dust cover, a spare fuse, user manual.
• All packed in good quality foam and carton.
CONFIGURATION LIST
| Order Code | Item | Model |
| DSY5000X |
| DSZ-JZ1 | UCIS Infinity Independent Achromatic Optical System, Onepiece
Structure, Stable and Reliable | ● |
| MS1 | Binocular Interpupillary Distance48-75mm Diopter adjustment | ○ |
| MS1A | Trinocular, Interpupillary distance 48-75mm Diopter adjustment | ● |
| E1020PA | High Eye-point Plan Eyepiece WF10X/20mm | ●● |
| E1022PC | High Eye-point Plan Eyepiece WF10X/22mm | |
| E1022PC | High Eye-point Plan Reticule Eyepiece WF10X/20mm | ○ |
| CT3 | Centering Telescope | ● |
| E1613PB | High Eye-point Plan Eyepiece WF16X/13mm | ○○ |
| WB-L4C | Infinity Long Distance Plan Achromatic Objective 4X | ○ |
| WB-L10B | Infinity Long Distance Plan Achromatic Objective 10X | ● |
| WB-L20C | Infinity Long Distance Plan Achromatic Objective 20X | ● |
| WB-L40B | Infinity Long Distance Plan Achromatic Objective 40X | ● |
| WB-L60B | Infinity Long Distance Plan Achromatic Objective 60X | ○ |
| WB-LPHp4C | Infinity Long Distance Plan Positive Phase-contrast Achromatic
Objective 4X | ○ |
| WB-LPHp10B | Infinity Long Distance Plan Positive Phase-contrast Achromatic
Objective 10X | ○ |
| WB-LPHp20C | Infinity Long Distance Plan Positive Phase-contrast Achromatic
Objective 20X | ● |
| WB-LPHp40B | Infinity Long Distance Plan Positive Phase-contrast Achromatic
Objective 40X | ○ |
| WB-LPHn4C | Infinity Long Distance Plan Negative Phase-contrast Achromatic
Objective 4X | ○ |
| WB-LPHn10B | Infinity Long Distance Plan Negative Phase-contrast Achromatic
Objective 10X | ○ |
| WB-LPHn20C | Infinity Long Distance Plan Negative Phase-contrast Achromatic
Objective 20X | ○ |
| WB-LPHn40B | Infinity Long Distance Plan Negative Phase-contrast Achromatic
Objective 40X | ○ |
| YG10A | Two fiters Structure | ● |
| YG11 | Three fiters Structure | ● |
| YG10-4000 | UV Shield | ○ |
| YGMK2KC-B | UV Excitation Filter (made in China) | ○ |
| YGMK2KC-G | UV Excitation Filter (made in China) | ○ |
| YGMK2KC-V | UV Excitation Filter (made in China) | ○ |
| YGMK2KC-UV | UV Excitation Filter (made in China) | ○ |
| YGMK2IC-B | B Excitation Filter (chroma) | ● |
| YGMK2IC-G | G Excitation Filter (chroma) | ● |
| YGMK2IC-V | V Excitation Filter ((chroma) | ● |
| YGMK2IC-UV | UV Excitation Filter (chroma) | ● |
| ZT5+ZTY5 | Fixed Stage + Attachable Mechanical Stage | ● |
| 5D-0022 | Bracket holder (φ65) | ○ |
| 5D-0023 | Multi-functional Bracket holder (φ54) | ● |
| 5D-0031 | Bracket (φ35) | ○ |
| 1D-0022 | 96-well Plate Holder | ○ |
| ZT5C | Mechanical Stage, 180mmx155mm; movement range: 80mmx50mm | ○ |
| ZT5-1000 | Drop specimen holder(φ110) | ○ |
| ZT5-2000 | Specimen Holder (for mechanical stage) | ● |
| ZQ580A | Quintuple Nosepiece | ● |
| SGL5 | LED Light (UP) | ○ |
| PCB-LPHB | Phase-contrast slide (Include10X, 20X/40X Phase contrast Ring) | ● |
| PCB-LPHC | Phase-contrast slide (Include4X,10X, 20X/40X Phase contrast Ring) | ○ |
| SGJ1-3000 | 6V 30W Halogen Lamp House | ● |
| SGJ5-0023 | Filter Holder | ● |
| LA1-0011 | Blue Filter (φ34) | ● |
| LU1-0011 | Green Filter (φ34) | ● |
| LH1-0011 | Yellow Filter (φ34) | ● |
| SX1 | 0.5X C-Mount | ○ |
| SX5 | 0.25X C-Mount | ○ |
| SX7 | 1X C-Mount | ● |
| JK-Nikon | Adapter for Nikon DSLR | ○ |
| JK-Cannon | Adapter for Cannon DSLR | ○ |
| BZ-0022B | 6V 30W Halogen Lamp | ○○○ |
| BZ-0022C | 6V 30W Osram Halogen Lamp | ● |
| DQ5 | 6V 30W Halogen Lamp Power House | ● |
| BZ-0023 | 250V/3.15A Φ5X20 fuse | ●●● |
| WJZ-DSZ2000 | Dust Cover | ● |
| BZ2-0018 | φ2mm Allen screw driver | ● |
| BZ-0021 | Power Cord | ● |
| BZ1-0016 | Accessory Box | ● |
