Professional Binocular Uop Microscope Highest Magnification Microscope

Ask Lasest Price
Brand Name :	UOP
Model Number :	UPH202i
Certification :	CE/ Rohs/ISO9001/ISO13485
Price :	390-500 USD / unit
Payment Terms :	T/T, Western Union
Supply Ability :	1000 units / month
Delivery Time :	1-45 days

Add to Cart

Product Details
Company Profile

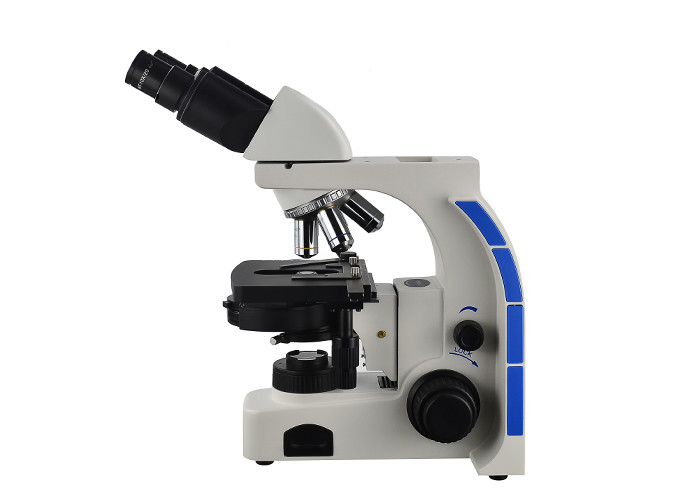

Professional Binocular Uop Microscope Highest Magnification Microscope

Professional Binocular Uop Microscope Highest Magnification Microscope 40X - 1000X Binocular Phase Contrast Microscope for Hospital/ Clinic/ Laboratory

TECHNICALSPECIFICATIONS

EYEPECE(S)

• Extended EWF 10x/20 mm eyepieces, Ø 30 mm tubes.
• Eyepieces can be secured to the tubes

HEADS

• Trinocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 52 to 75 mm and is equipped with diopter adjustment(s).
• The binocular head comes with a Ø 30 mm photo port.
• An optional ergonomic titling head (0:100 50:50) are also available (Otional)

NOSEPIECE
• Revolving and reversed nosepiece for 4 objectives (5 objectives is optional)

OBJECTIVES

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

Infinity achromatic phase contrast objectives 4x/0.13 10x/0.30 20x/0.40 S40x/0.70 S100x/1.25 oil (Optional)
Infinity plan phase contrast objectives 4x/0.10 10x/0.25 S40x/0.65 S100x/1.25 oil (Standard) S60x/ 0.80 (Optional)

Professional Binocular Uop Microscope Highest Magnification Microscope

STAGE

• 156 x 138 mm ceramic stage with integrated 76 x 54 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches.The surface also ensures stray light not to be reflected from the stage into the objective

• 185 x 177 mm rackless stage equipped with double slide holder and integrated 75 x 50 mm rackless mechanical stage. It has no protruding parts, enabling more smooth movements and is safer (Optional)

CONDENSER FOR PHASEONTRAST

• An optional height adjustable NA. 1.25 phase contrast disc condenser with plan phase 10/20/S40x S60x and S100x oil immersion objectives
and dark field stop position for dark field contrast up to 400x magnification (Optional)

Professional Binocular Uop Microscope Highest Magnification Microscope

FOCUSING

• Coaxial coarse and fine adjustments, 100 graduations, 1 μm per graduation, 100 μm per rotation, total travel approximately 14 mm.(most to 25mm)
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.
• The coarse adjustments are equipped with friction control

ILLUMINATION

• 3 W adjustable LED illumination with internal 100-240 V power supply
• The innovative design offer larger apertures, allowing the optical system of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics.
Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime
• The illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving
power of the optics. Also available for other models as an option

PACKAGING

• Supplied with power cord, dust cover, a spare fuse, user manual and 4 ml immersion oil for models with S100x objective.
• All packed in good quality foam and carton.

CONFIGURATION LIST

Order Code	Item	UPH202i	UPH203i
UB200	Body (Choose the power cord please)	●	●
MS2	Binocular, Interpupillary distance 52-75mm	●	/
MS2A	Binocular, Interpupillary distance 48-75mm	○	/
MT2B	Trinocular, Interpupillary distance 52-75mm (100:0)	/	○
MT2	Trinocular, Interpupillary distance 52-75mm (20:80)	/	●
MT2A	Trinocular, Interpupillary distance 48-75mm (20:80)	/	○
MT2C	Trinocular, Interpupillary distance 52-75mm (50:50)	/	○
E1020PA	High eye-point plan eyepiece WF10X/20	●●	●●
E1022PC	High eye-point plan eyepiece WF10X/22	○○	○○
E1613PB	Plan eyepiece WF16X/13	○○	○○
E1020GA	High eye-point plan eyepiece WF10X/20 (Pointer)	○	○
E1022GC	High eye-point plan eyepiece WF10X/22 (Pointer)	○	○
E1020RA	Reticule Eyepiece, Cross WF10X/20	○	○
CT2	Centering Eyepiece	●	●
WB-X4C	Infinity Achromatic Objective 4X N.A.0.13	○	○
WB-XPHp10C	Infinity Ach. Phase-Contrast Objectives (Positive) 10X	○	○
WB-XPHp40C	Infinity Ach. Phase-Contrast Objectives (Positive) 40X (S)	○	○
WB-XPHp100C	Infinity Ach. Phase-Contrast Objectives (Positive) 100X (S) oil	○	○
WB-XPHn10C	Infinity Ach. Phase-Contrast Objectives (Negative) 10X	○	○
WB-XPHn40C	Infinity Ach. Phase-Contrast Objectives (Negative) 40X (S)	○	○
WB-XPHn100C	Infinity Ach. Phase-Contrast Objectives (Negative) 100X (S) oil	○	○
WB-P4C	Infinity Plan Achromatic Objectives 4X	●	●
WB-PPHp10C	Infinity Plan Phase-Contrast Objectives (Positive) 10X	●	●
WB-PPHp20C	Infinity Plan Phase-Contrast Objectives (Positive) 20X	○	○
WB-PPHp40C	Infinity Plan Phase-Contrast Objectives (Positive) 40X (S)	●	●
WB-PPHp60C	Infinity Plan Phase-Contrast Objectives (Positive) 60X (S)	○	○
WB-PPHp100C	Infinity Plan Phase-Contrast Objectives (Positive) 100X (S) oil	●	●
WB-PPHn10C	Infinity Plan Phase-Contrast Objectives (Negative) 10X	○	○
WB-PPHn20C	Infinity Plan Phase-Contrast Objectives (Negative) 20X	○	○
WB-PPHn40C	Infinity Plan Phase-Contrast Objectives (Negative) 40X (S)	○	○
WB-PPHn60C	Infinity Plan Phase-Contrast Objectives (Negative) 60X (S)	○	○
WB-PPHn100C	Infinity Plan Phase-Contrast Objectives (Negative) 100X (S) oil	○	○
ZT2	Mechanical Stage,156X138mm, movement range 76X54mm	●	●
ZT2B	Rackless Stage, right handed, 185X177mm, movement range 75X50mm	○	○
ZQ480	Quadruple Nosepiece, inward facing	●	●
ZQ580	Quintuple Nosepiece, inward facing	○	○
JG2C	Abbe Condenser	●	●
JG40B	Plan Dis Phase-contrast Condenser	○	○
JG41A	Plan Dis Phase-contrast Condenser (with 10X /40X darkfield function)	○	○
PCB-XPH10B	Phase-Contrast Slide (For Ach. Phase Contrast Objectives 10X)	○	○
PCB-XPH40B	Phase-Contrast Slide (For Ach. Phase Contrast Objectives 40X)	○	○
PCB-XPH100B	Phase-Contrast Slide (For Ach. Phase Contrast Objectives 100X)	○	○
PCB-PPH10C	Phase-Contrast Slide (For Plan Objectives) 10X	○	○
PCB-PPH20C	Phase-Contrast Slide (For Plan Objectives) 20X	○	○
PCB-PPH40C	Phase-Contrast Slide (For Plan Objectives) 40X/60X/100X	○	○
KL2B	Kohler Illuminator (No field diaphragm)	○	○
KL3A	Kohler Illuminator (with field diaphragm)	●	●
DQ2	for 6V 20W Halogen Lamps	○	○
DQ2A	for 6V 30W Halogen Lamps	○	○
DQLC2C	3W LED Electric Device (with Rechargeable Batteries)	○	○
DQL2C	3W LED Electric Device	●	●
SX2A	0.5X C-Mount	○	○
SX3	1X C-Mount	○	○
SX2	0.65X C-Mount	○	○
JK-Nikon	Adapter for Nikon DSLR	○	○
JK-Cannon	Adapter for Cannon DSLR	○	○
LA5-0011	Blue Filter (φ38) (LED Lamp without Filter)	○	○
LU5-0011	Green Filter (φ38)	○	○
LH5-0011	Yellow Filter (φ38)	○	○
LB5-0011	Ground Glass (φ38)	○	○
BZ-0022A	6V 20W Osram Lamp	○	○
BZ-0022	6V 20W Halogen Lamp Made in China	○	○
BZ-0023	250V/3.15A Φ5X20 fuse	●●●	●●●
BZ-0022B	6V 30W Halogen Lamp	○	○
BZ-0022C	6V 30W Osram Halogen Lamp	○	○
DQL2B-2000	3W LED Lamps	●	●
BZ-0027	Immersion Oil	●	●
WJZ-UB100I/200I	Dust Cover	●	●
BZ2-0018	φ2mm Allen screw driver	●	●
BZ-0021	Power Cord	●	●
● menas: stadard configuration ○ means optional configuration
