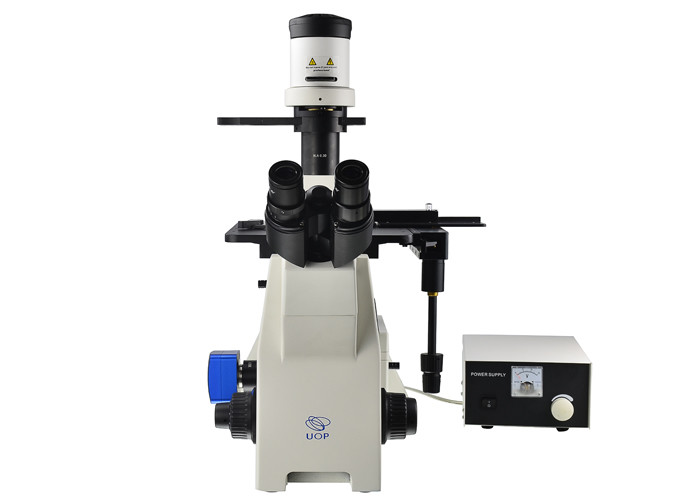

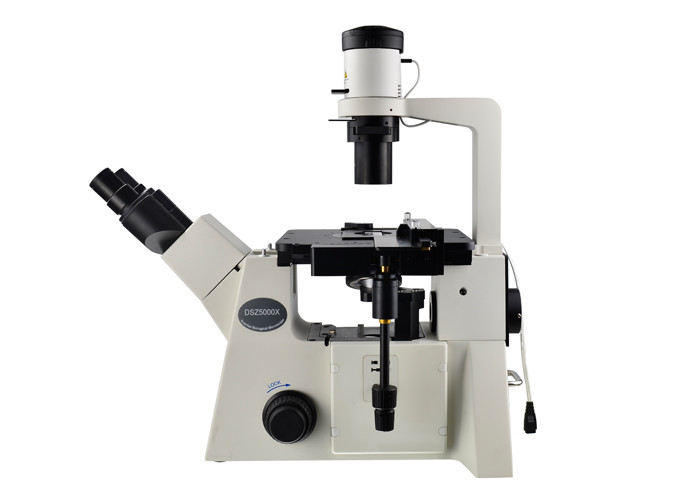

DSZ5000X Inverted Biological Microscope with 100- 400X Magnification

TECHNICALSPECIFICATIONS


EYEPECE(S)
• Extended EWF 10x/20 mm eyepieces, Ø 30 mm tubes.
• Eyepieces can be secured to the tubes
HEADS
• Binocular Siedentopf type heads are with 45° inclined tubes, interpupillary distance from 52 to 75 mm and is equipped with diopter adjustment(s). (48 to 75 mm optional)


NOSEPIECE
• Revolving and reversed nosepiece for 5 objectives

OBJECTIVES
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

Infinity plan achromatic LWD objectives 4x/0.13 (optional) / 10x/0.25/ 20x/0.40/ S40x/0.60/ S60x/0.70 (optional)
Infinity plan achromatic LWD phase contrast objectives 4x/ 0.13 (optional) / 10x/0.25 (optional) / 20x/0.40/ S40x/0.60 (optional)


STAGE

• Attachable mechanical stage

•Mechanical stage 240 x 260 mm ceramic stage with integrated 135 x 85 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches.The surface also ensures stray light not to be reflected from the stage into the objective

CONDENSER FOR BRIGHT FIELD
• ELWD condenser NA 0.30, LWD 72mm, it will be 150mm after taking down the condenser.


FOCUSING
• Coaxial coarse and fine adjustments, 100 graduations, 1 μm per graduation, 100 μm per rotation, total travel approximately 14 mm.
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.
• The coarse adjustments are equipped with friction control

ILLUMINATION
• 6V 30W adjustable halogen illumination with internal 100-240 V power supply
• The innovative design offer larger apertures, allowing the optical system of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics.
Other benefits of the DSZ5000X is the low energy consumption and a long operating lifetime
• The illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving
power of the optics. Also available for other models as an option


PACKAGING
• Supplied with power cord, dust cover, a spare fuse, user manual.
• All packed in good quality foam and carton.


CONFIGURATION LIST
